Custom LED Channel Letters for Sign Companies, Wholesalers & Commercial Projects

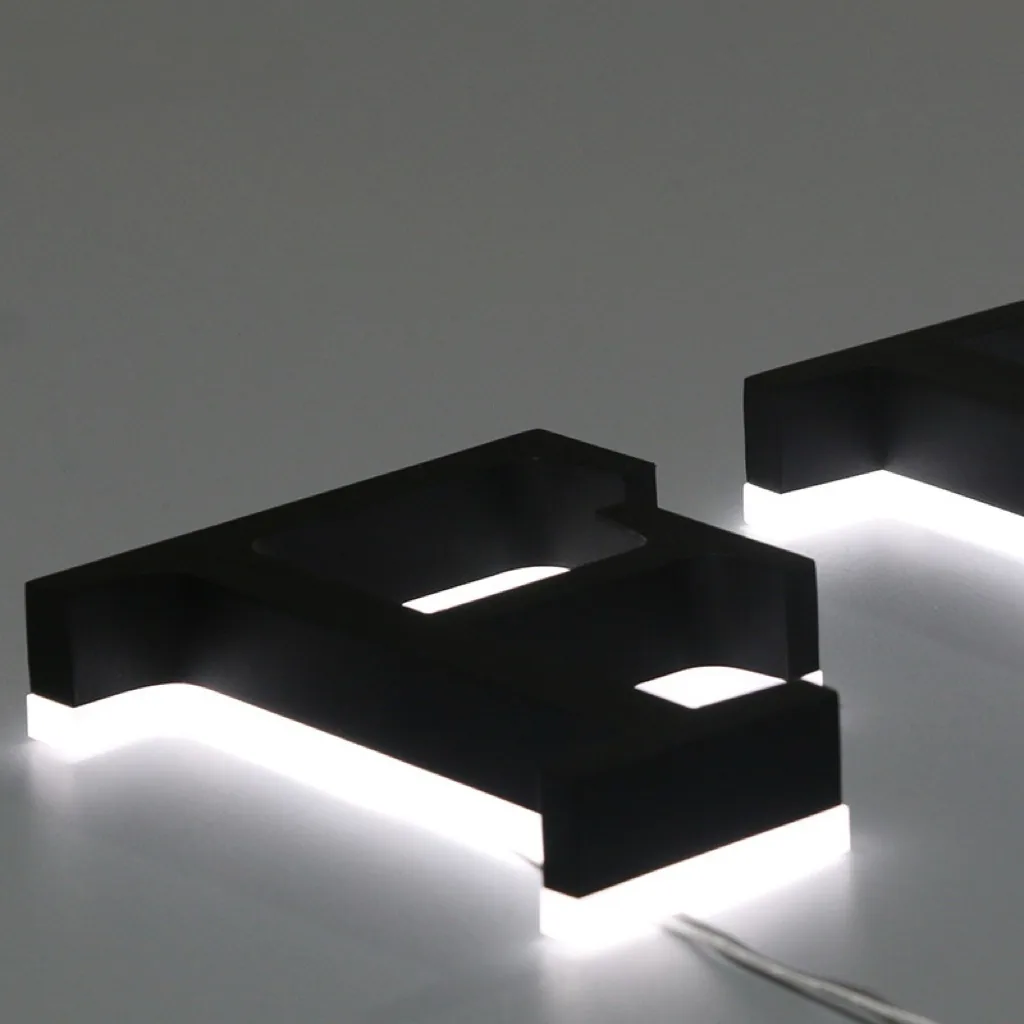

Illuminated form

A controlled halo behind a dimensional identity.

Best for

Retail façades, hotel entrances, reception walls and premium commercial identities.

Lighting

Soft rear halo; brightness, colour temperature and spacing are confirmed for the wall and environment.

Construction

Dimensional metal or acrylic construction with rear illumination and a project-specific mounting gap.

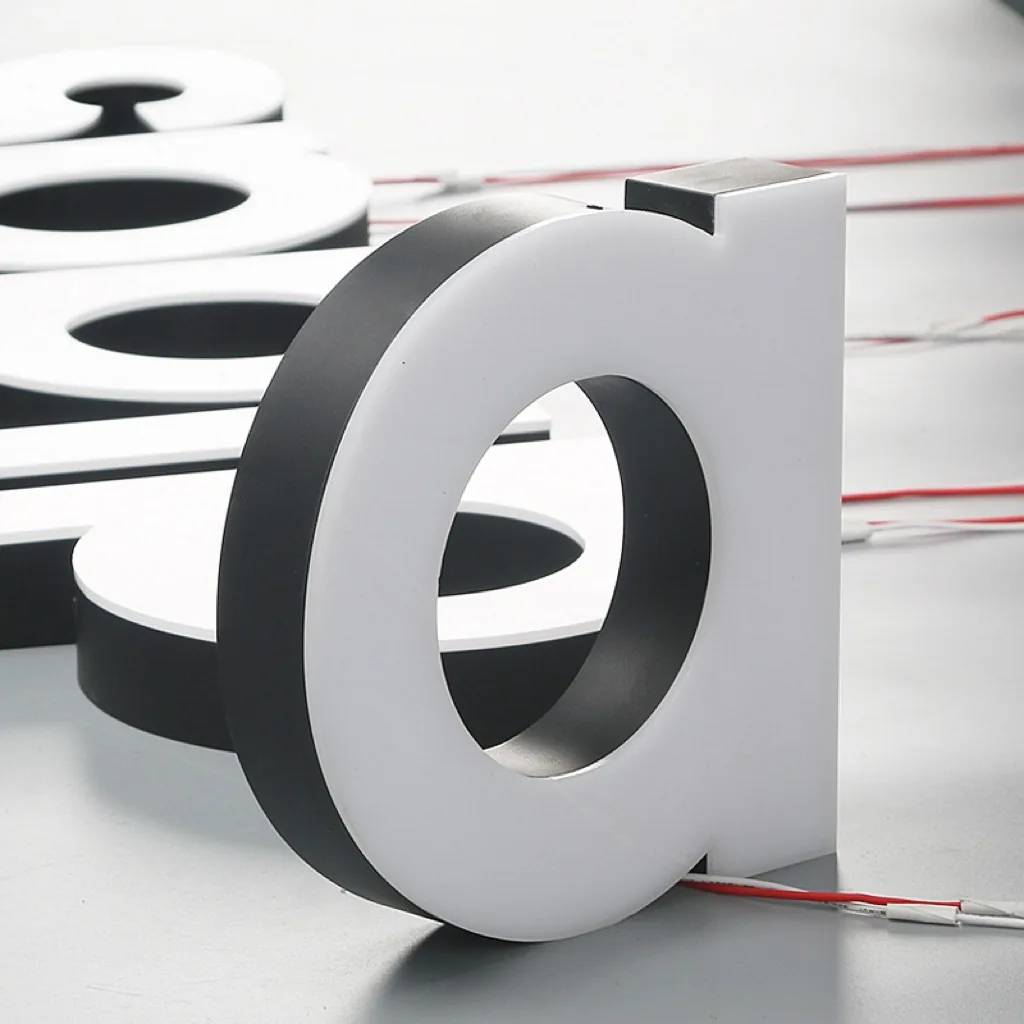

Illuminated form

A clean face with the edge visually removed.

Best for

Brand rollouts, contemporary façades, retail programmes and interior identity walls.

Lighting

Front-lit, halo-lit or combined illumination can be evaluated against the desired visual effect.

Construction

Acrylic face and concealed return construction developed around the approved artwork.

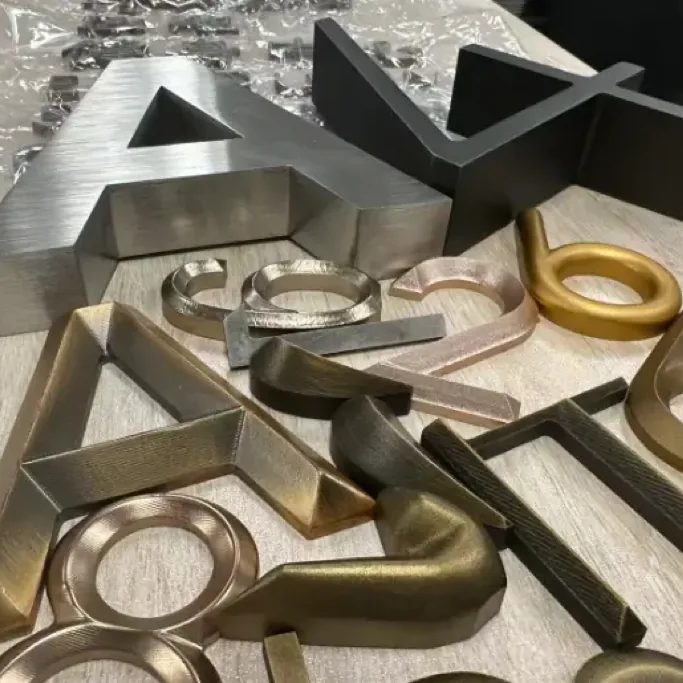

Metal finish

Material presence before the light is switched on.

Best for

Architectural façades, offices, hospitality interiors and wayfinding systems.

Lighting

Non-illuminated or rear-lit options; electrical and environmental details are confirmed in the brief.

Construction

Stainless steel, brass, aluminium or project-selected metal construction; brushed, mirror, painted or agreed surface finishes confirmed from the approved design.

Faux neon

The neon line language, built with modern LED components.

Best for

Hospitality, retail interiors, events, brand moments and feature walls.

Lighting

Continuous line effect; colour, dimming and backing choices are specified around the application.

Construction

Silicone-jacketed LED neon tube bent to the artwork on a contour-cut acrylic or metal backing, with power and mounting details agreed per project.

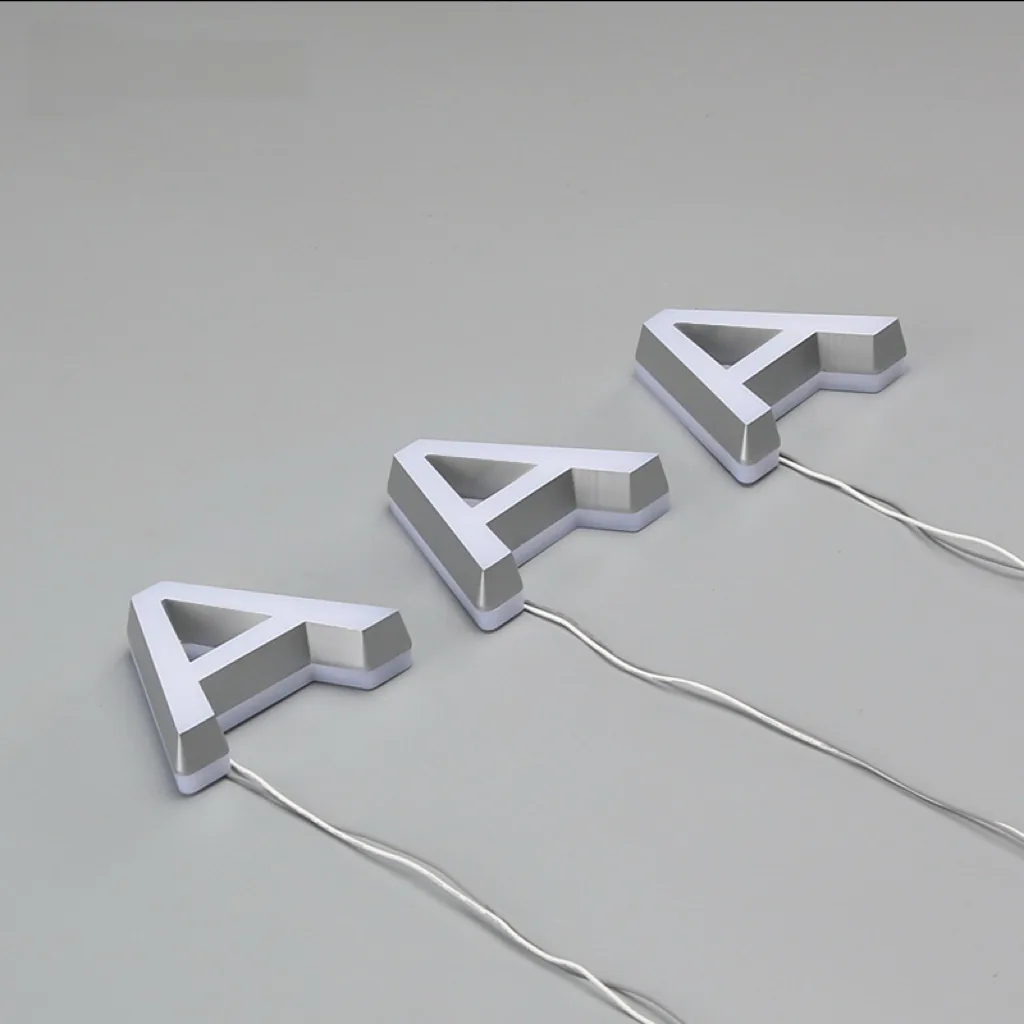

Illuminated form

Compact front-and-back assembly for close-range detail.

Best for

Interior branding, counters, menus, reception details and compact retail graphics.

Lighting

Front light for bright, even illumination, or back light for a soft halo; the integrated LED layout is assessed against letter depth, viewing distance and heat management.

Construction

Acrylic face with a precision-cut outline and a metal or painted edge trim, assembled around the minimum practical letter size for the artwork.

Illuminated form

One-piece thermoformed faces for round, curved and double-sided boxes.

Best for

Retail façades, storefronts, forecourts, hospitality and freestanding promotional displays.

Lighting

Even internal illumination across the formed face; colour temperature and diffusion are confirmed for the viewing distance and environment.

Construction

Thermoformed acrylic or ABS face over a metal frame, with internal LED modules and a project-specific finish.

Illuminated form

A slim acrylic panel with even, edge-to-edge illumination.

Best for

Storefront signage, brand logo boxes, restaurant menu boards, bank and hospital wayfinding, mall promotions, elevator hall signage and standardised chain-store programmes.

Lighting

SMD 2835/5050 LED strips or modules at 12 V / 24 V, 3000 K / 4000 K / 6000 K, laid out at 80–150 mm spacing against the housing depth; a diffuser panel and reflective backing can be added for uniformity. Indoor builds are typically IP20 and outdoor builds are sealed to IP54–IP65; the rating is confirmed with the installation context.

Construction

Galvanised steel, stainless steel, aluminium or cold-rolled steel housing, 1.0–2.0 mm, CNC-bent and welded with powder-coated, painted or brushed finishes; acrylic face panel 2–5 mm in clear, opal, frosted or coloured grades, with UV printing, silk-screen, back-spray or an inserted backlit film.

Illuminated form

A metal trim cap framing a bright, evenly lit face.

Best for

High-end commercial complexes, brand storefronts, office building exteriors and interior image walls or wayfinding.

Lighting

High-brightness LED modules or COB at 12 V, 2700 K–6500 K; outdoor builds use potted modules and drainage details with IP65-level protection as the target. Electrical and protection details are confirmed in the project proposal.

Construction

Stainless steel (201/304/316L) or 6061-T6 aluminium trim and returns with brushed, mirror or painted finishes; laser-cut face in UV-resistant acrylic or PC diffuser. Casing depth 3–8 cm as standard, with deeper builds reviewed per project.

Illuminated form

A fully cast face that glows edge to edge.

Best for

Brand storefronts, mall atriums, office lobby logos, chain VI rollouts, exhibition halls and hotel lobbies.

Lighting

SMD or COB modules at 12 V / 24 V behind the cast layer, 2700 K–6500 K. The resin carries the light across the whole face, so brightness is set by depth and module spacing rather than a diffuser panel; protection details are confirmed per project.

Construction

Stainless steel, galvanised steel or aluminium shell with a laser-cut backplate and formed returns, filled with epoxy resin for indoor work or PU resin for outdoor exposure; brushed, mirror, plated or painted finishes.
